Speedplay Zeros with custom spindles

Discuss light weight issues concerning road bikes & parts.
Gearhead65
Posts: 112
Joined: Sat Jan 23, 2010 1:24 am
Location: Evansville, IN, USA

by Gearhead65

Long time troller, first time poster. Thought I'd share a Winter project on some Speedplay Zeros. Wanted to switch from Keo Sprints to a nice set of Zeros. The total cleat/pedal weight on the SS and ChrMo Zeros was more than the Sprints. So bought a slightly used pair of Chromoly Zeros/cleats for around $90 on Ebay and bought a set of titanium spindles of a nano design, but machined for std Zeros for around $60. (Mr. W....does VERY nice work.)

Anyway photos tell the story. Got a set of Zeros that look like Nanos, weight slightly less than stock Zero Ti's for around $150. Happy.

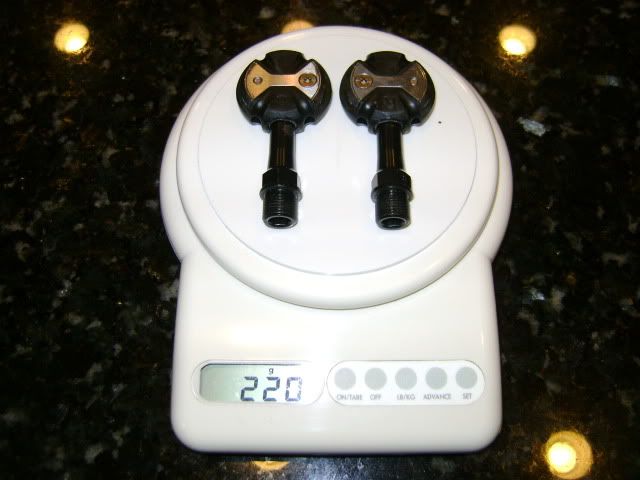

STOCK Zero Chromoly

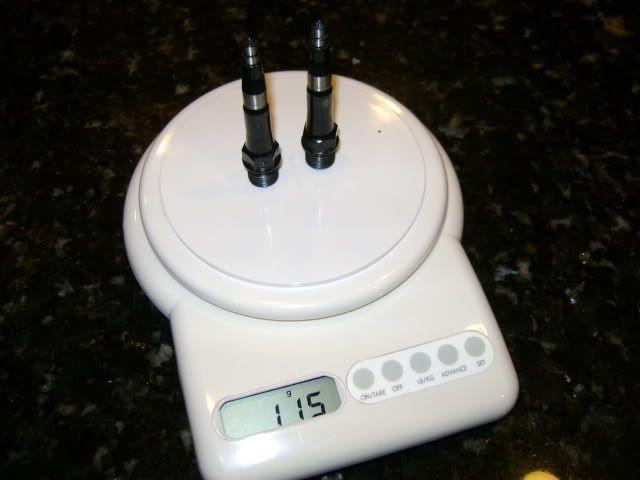

Chromoly Spindles

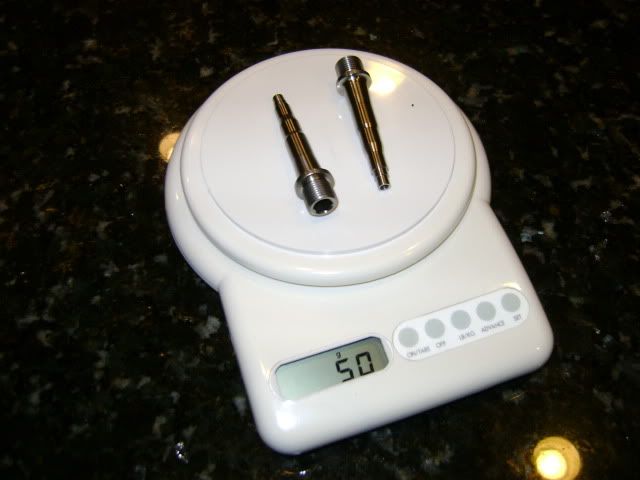

Titanium Spindles

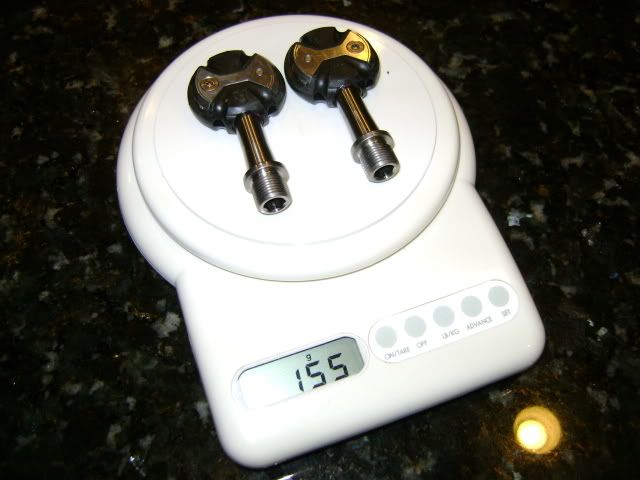

Assembled pedals
2015 Specialized Crux Pro
2013 BMC TMR01 custom build
2013 Cannondale F-Series 29'er, Carbon 3
2012 Cannondale CAAD10-1 custom build, 14.06 lbs
1980 Palo Alto custom build

User avatar
STARNUT
Posts: 3424
Joined: Sun Jun 19, 2005 6:43 am
Location: Hilly, Hot, and Windy

by STARNUT

I'm not a big speedplay fan but this is a pretty cool mod. Who is Mr. W?

Nice first post. I know DJ will love this post, for a few reasons.

Starnut
"Don't pedal harder, pedal faster!"
Q-FACTOR IS A RED HERRING

BB30.COM

Gearhead65
Posts: 112
Joined: Sat Jan 23, 2010 1:24 am
Location: Evansville, IN, USA

by Gearhead65

Not on his site, but he'll fix you up for Speedplays if you Email him.
http://shop.titaniumspindles.com/
2015 Specialized Crux Pro
2013 BMC TMR01 custom build
2013 Cannondale F-Series 29'er, Carbon 3
2012 Cannondale CAAD10-1 custom build, 14.06 lbs
1980 Palo Alto custom build

User avatar
MasterOMayhem
Posts: 195
Joined: Thu Dec 06, 2007 9:30 pm

by MasterOMayhem

is there a weight restriction for these spindles?

racermech
Posts: 216
Joined: Sun Aug 30, 2009 7:31 pm

by racermech

Website says 235lbs for the couple of models i looked at.

User avatar
MasterOMayhem
Posts: 195
Joined: Thu Dec 06, 2007 9:30 pm

by MasterOMayhem

i emailed them and they said speedplay should be available in a week or two....

dhfreak
Posts: 31
Joined: Sun Nov 22, 2009 6:08 pm

by dhfreak

I have Speedplay Zeros with the same axles, and with aluminium bowties and ti-hardware they weigh in at 138 grams; eight grams more than the $630 Nanograms. I'll have to pull the pedals off of my bike and post up some pics with them on the scale.

Mike

mfosterTT
Posts: 3
Joined: Wed Jul 29, 2009 7:00 pm

by mfosterTT

Thanks for the info ! I have a set of Ti Speedplay Zeros; cro-mo and s/s too. The Ti pedal bodies spin forever. Even if I replace the bearings in the SS and Cro-mo, there's a lot of resistance. Hopefully the new Ti body will produce a smoother pedal.

If anyone is interested : I got a set of Zero bodies a while back from All3sports.com , and PBK has Speedplay bearings and small parts available.

User avatar
jipperd
Moderator / Brake Pad Boy
Posts: 1268
Joined: Wed Dec 13, 2006 11:44 am
Location: Holland

by jipperd

Is there any information if there are similar axle's for the Look Keo CroMo's (previous genereation)

User avatar
Gold Knight
Posts: 554
Joined: Mon Nov 07, 2005 4:27 pm
Location: Santa Barbara, CA

by Gold Knight

the spindles Mr W makes also fit the X series as they are exactly the same!! I have them and the weight is 128g w/steel bolts/alloy butterflies and 126g w/ti bolts and 124g w/allot bolts! They are very nicely made and Wade ships fast too.
:smartass: DO NOT RIDE AN AX-LIGHTNESS FORK :smartass:

User avatar
Stolichnaya
Posts: 2621
Joined: Wed Oct 06, 2004 6:55 pm
Location: Vienna, AUT

by Stolichnaya

Speedplay offers the pedal bodies as a separate item now without spindles, FYI.

http://www.bike-components.de/products/ ... erper.html

Cykelmusen
Posts: 26
Joined: Fri Jan 08, 2010 11:08 pm
Location: Copenhagen

by Cykelmusen

Thank you for the tip. How difficult is it to change the spindles?

Gearhead65
Posts: 112
Joined: Sat Jan 23, 2010 1:24 am
Location: Evansville, IN, USA

by Gearhead65

mfosterTT
You may check those Ti pedals to make sure they're properly greased internally. I'm just thinking the only way the pedal bodies would spin freely is if there is absolutely no grease in the bearings (and that's not good!). (The grease provides some resistance.)

Cykelmusem
Check out the appropriate PDF here.
http://www.speedplay.com/index.cfm?fuse ... me.support
This is what I used for a disassembly guide.
2015 Specialized Crux Pro
2013 BMC TMR01 custom build
2013 Cannondale F-Series 29'er, Carbon 3
2012 Cannondale CAAD10-1 custom build, 14.06 lbs
1980 Palo Alto custom build

Cykelmusen
Posts: 26
Joined: Fri Jan 08, 2010 11:08 pm
Location: Copenhagen

by Cykelmusen

Thank you! :wink:

bhodgkiss
Posts: 42
Joined: Sat Apr 19, 2008 11:33 am
Location: UK

by bhodgkiss

a worthwhile uprgrade, good weight save
