FINALLY!! My new Evo Hi Mod build - 4.78kg

[dereksmalls]

Well it's finally arrived. After cracking my BMC (my cross bike got knocked off the hook holding it up and it crashed down cracking the top tube on my BMC underneath it ) a replacement 48cm HI Mod frame has finally arrived to replace it.

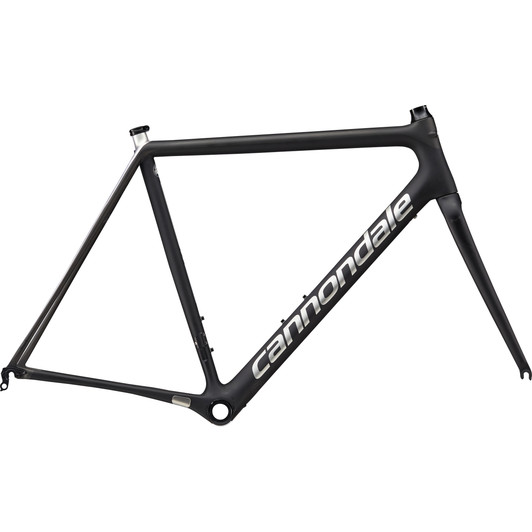

This is the version I saw in the box at my LBS this morning


I thought it was a matt finish frame with silver paint on the stays and fork, but no, it's a shimmery metallic fade on the top tube and frame with silver on the stays, inside fork legs etc. SO it will be heavier than I thought, but it looks HOT AF!! I was hoping for a sub 5 build but now as it's a painted frame I'm hoping for sub 5.5

Anyway, I'll update with parts list when I get home and spreadsheet and might ask for some advice as I can't decide on the Extralite stem or the MCFK stem

UPDATED PARTS LIST 13.09.18

Lightning 172.5mm Compact crankset w/spider 357
SRAM pressfit bottom bracket - plastic sleeve removed
Extralite MC 52/36 100
KCNC chainring bolts 8

2016 SR Shifters clamps removed 327
BTP carbon clamps & bolts 9
2016 SR FD (untuned) 74
2016 SR RD (tuned Fiber Lyte pullys, inner cage) 151
Tune cable housing (5x uncut) 27
Campagnolo brake and gear cables
Chain KMC X11SL DLC (uncut) 241

MCFK 110m 6 degree stem 91
FSA SL Upper Bearing 13.9
Cannondale lower headset
Cannondale steerer plug
Veloflyte dust cover 1.6
Lizard Skins DSP 1.8mm
Schmolke TLO 42mm 145
Bar plugs (filed out) 3

EE brakes 170
Wheelworks Maker Blue Pads

Custom built Roubaix pedals

Berk Lupina 132 in matte 63
Hylix Carbon seatpost (uncut) 400m 94
Smud carbon cradle 10
Hylix yokes 15
Bolts 7
Bolt mount 11
Cannondale seat clamp

Carbonworks bottle cages x2 + BOLTS 13

Farsports 20mm carbon tubular
Extralite cyber hubs
Ride Wert Stick Shift in red 29
Aerolite spokes, Wheelsmith nipples 906
Recon 11sp campag 11-27 cassette 97 spacer added to get shifting alignment working with Fiberlyte RD cage
Recon cassette lock ring 4
Carbon-Ti X Lock Special skewers 31
Veloflex Sprinter 236
Veloflex Sprinter 240
Extras - glue and air and stuff TBC

[Wookski]

Get the McFK stem- I love Extralite but their stems suck and have a habit of destroying bars and steerers.

[beanbiken]

Get the McFK stem- I love Extralite but their stems suck and have a habit of destroying bars and steerers.

Yeah, ditto here. Have both and the Extralight sits in a box in the shed................

BB

[dereksmalls]

Here is the build list. A couple of things I will change, I need a BB shell as the frame didn't come with one. The headset bottom bearing is not the right size so I will need one for there as well. Sorry the attachment is quite small.

[dereksmalls]

Lightning 172.5mm Compact crankset w/spider 357
Ebay ceramic BB bearings 45
Extralite MC 52/36 100
KCNC chainring bolts 8

2016 SR Shifters clamps removed 327
BTP carbon clamps & bolts 9
2016 SR FD (untuned) 74
2016 SR RD (tuned Fiber Lyte pullys, inner cage) 151
Tune cable housing (5x uncut) 27
Alligator shifter cables (x2 uncut) 30
Alligator brake cables (x2 uncut) 50
Chain KMC X11SL DLC (uncut) 241

Extralite Hyperstem stealth 110 -6 (inc bolts) 82 OR MCFK 110m 6 degree stem 91
Cane Creek AER headset 37 (will have to replace bottam bearing as too small)
J&L steerer clamp 7
Fiberlyte top cap 3
Schmolke carbon bolt M6x40 (uncut) 2
Deda Tape (uncut) 40
Schmolke TLO 42mm 145
Bar plugs (filed out) 3

EE brakes 170
Swiss Stop Black Prince pads 31

Speedplay Zeros (tuned) 133

Berk Lupina 132 in matte 63
Hylix Carbon seatpost (uncut) 400m 94
Smud carbon cradle 10
Hylix yokes 15
Bolts 7
Bolt mount 11
Mt Zoom seatpost clamp & ti bolt 6

Carbonworks bottle cages x2 + BOLTS 13

Farsports 20mm carbon tubular
Extralite cyber hubs
Aerolite spokes, Wheelsmith nipples 906
Recon 11sp campag 11-27 cassette 97
Recon cassette lock ring 4
Carbon-Ti X Lock Special skewers 31
Veloflex Sprinter 236
Veloflex Sprinter 240
Extras - glue and air and stuff TBC

Total 3805

[Vuong05]

Excited for this build!

[dereksmalls]

Wheelset weight



A little bit of inspiration for me on the decals, and words to live by - if you know Metallica, you'll know what this is from



Chainrings

[dereksmalls]

Tune housing - uncut


Brake and shifter cables - uncut



Shifters and clamps

[dereksmalls]

Rear derailleur with Fiberlyte inner cage and jockey wheels




Crankset

[dereksmalls]

Recon cassette lock ring


Recon cassette


KMC DLC 11XL chain - uncut


KCNC chaninring bolts


Carbonworks cages - before they stopped making this version

[dereksmalls]

Schmole TLO


MCFK stem 110m - think I'll go with this instead of Extralite


Deda tape - uncut


Drilled & filled (I don't own a dremel!) carbon bar plugs


Fiberlyte top cap


Shmolke bolt


J&L expander


Hylix 400m length seatpost (without the additional parts as I forgot to take a photo on the scales of them all!)

[dereksmalls]

Berk Lupina


Cane Creek AER headset (including bottom bearing that I will replace with correct size)


Carbon Ti - X lock skewers

[alexgodmar]

Can't wait to see more!

[Imaking20]

Holy shit

[glam2deaf]

Looking forward to seeing this finally come together.
