Thompson Elite "Tuned"

Discuss light weight issues concerning road bikes & parts.
User avatar
Juanmoretime
Administrator
Posts: 7049
Joined: Sat Jun 19, 2004 11:08 am
Location: Urbana, Illinois

by Juanmoretime

I'm giving this a bump for the a.......members although I'm interested too! :wink:
RESIDENT GRUMPY OLD MAN.

krzysiekmz
Posts: 1082
Joined: Sat Nov 10, 2007 4:23 am
Location: Poland/Toronto
Contact:

by krzysiekmz

Ok guys, seems like the tuning pieces are availdable now.

Top:

http://smud-carbon.eu/thomson_gora.html

Bottom:

http://smud-carbon.eu/thomson_dol.html

Contact:

http://smud-carbon.eu/kontakt.html

Chris.
Orbea Oiz - xxxx
MSC Koncept Carbon Di2 - 6955g
Leichtkraft Team Carbon - 6868g.

by Weenie


User avatar
theremery
Posts: 2673
Joined: Sun Jun 12, 2005 10:56 am
Location: New Zealand

by theremery

Thankyou, Chris. I've emailed to get mine!
Updated: Racing again! Thought this was unlikely! Eventually, I may even have a decent race!
Edit: 2015: darn near won the best South Island series (got second in age
-group)..woo hoo Racy Theremery is back!!

User avatar
Juanmoretime
Administrator
Posts: 7049
Joined: Sat Jun 19, 2004 11:08 am
Location: Urbana, Illinois

by Juanmoretime

Yes, I have one on the way too! :shock:
RESIDENT GRUMPY OLD MAN.

BmanX
Posts: 3844
Joined: Thu Nov 10, 2005 5:31 pm

by BmanX

Thought that I would post some pictures in this thread. Keep in mind that I had these made a little stronger than normal since I am not a flyweight by any means and right at the weight limit for the parts.

NEW PARTS - No ti hardware yet. Pretty sure that the Ti hardward is about 12g-13g which would be nice.

OLD PARTS - Stock.
BIG DADDY B FLOW
AERO & LIGHT is RIGHT

Cervelo SLC 5960g/13.13 lbs

User avatar
djconnel
Posts: 7926
Joined: Wed Sep 26, 2007 1:57 pm
Location: San Francisco, CA
Contact:

by djconnel

Great!

My retrofitted KCNC M5 hardware is 26.2 grams. I'm not so pleased using that with a Becker saddle, though. It's been okay so far, but I wouldn't want to crash it.

The claimed weight for the two carbon bits is 22-25 grams. The price is "140 z". Is that Euro?

added: It's 140 złoty, around 38 euro.

The competition, who was first to market, claims 19 grams.


User avatar
Juanmoretime
Administrator
Posts: 7049
Joined: Sat Jun 19, 2004 11:08 am
Location: Urbana, Illinois

by Juanmoretime

Yet another:

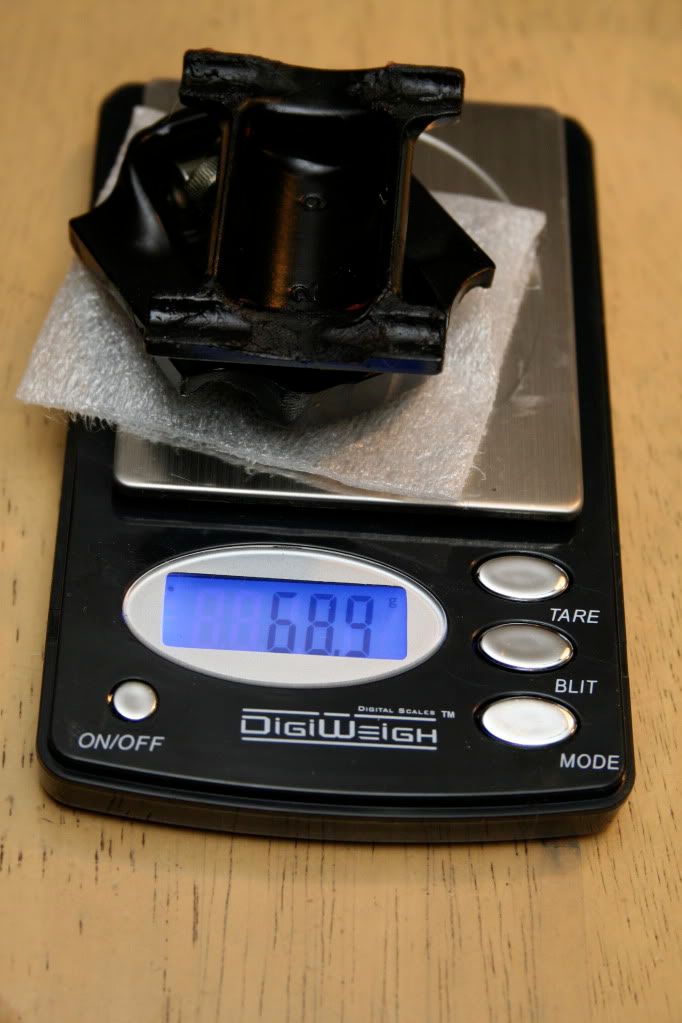

Old hardware and clamp:

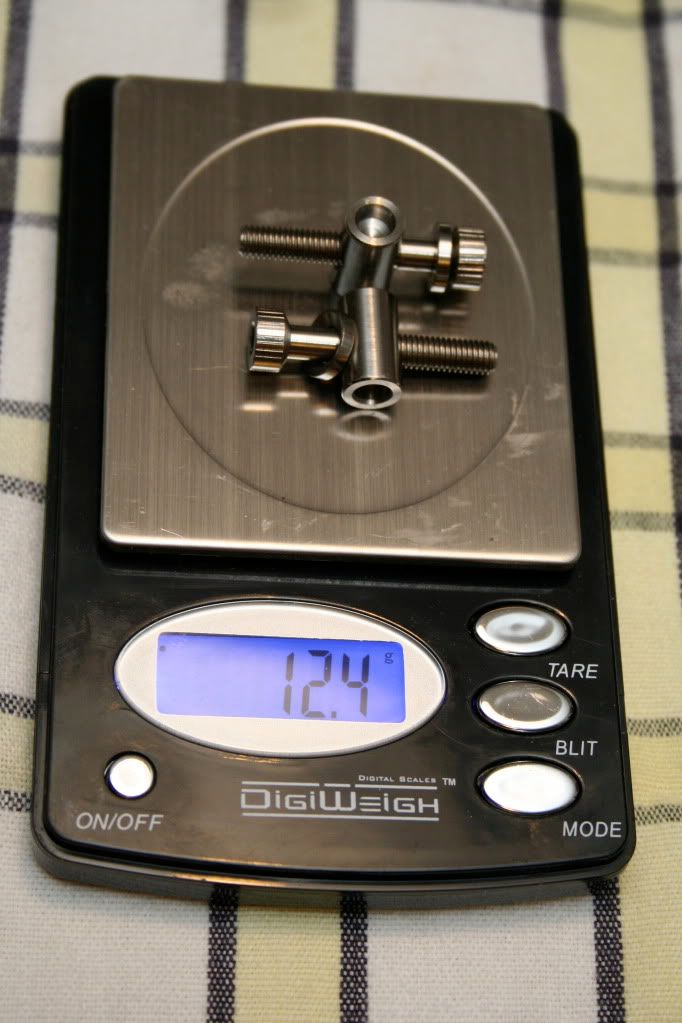

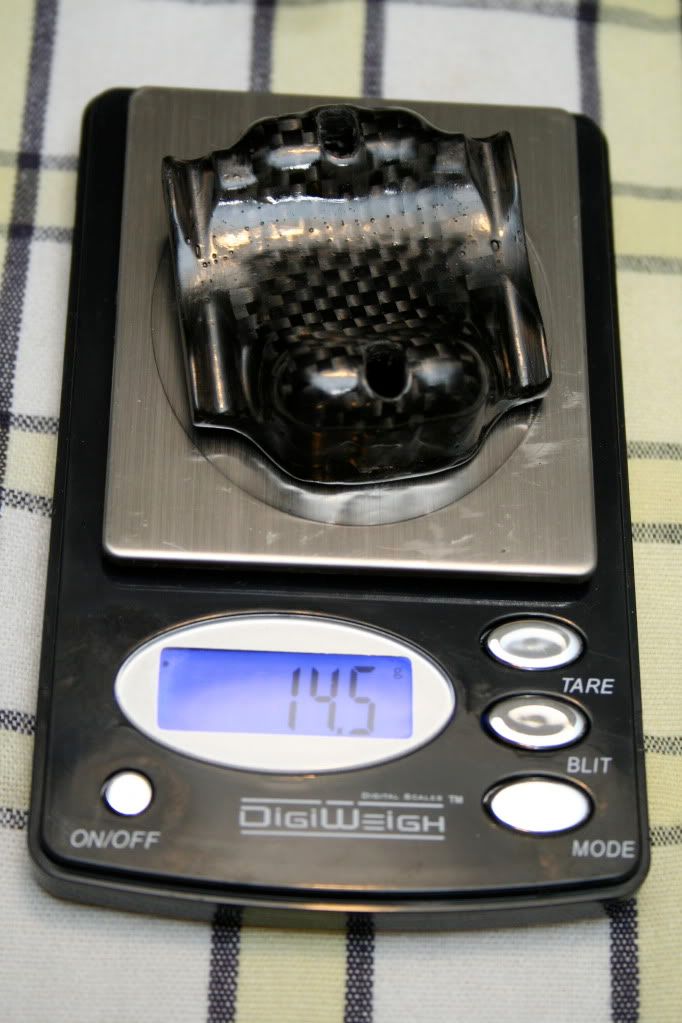

New hardware and clamp:

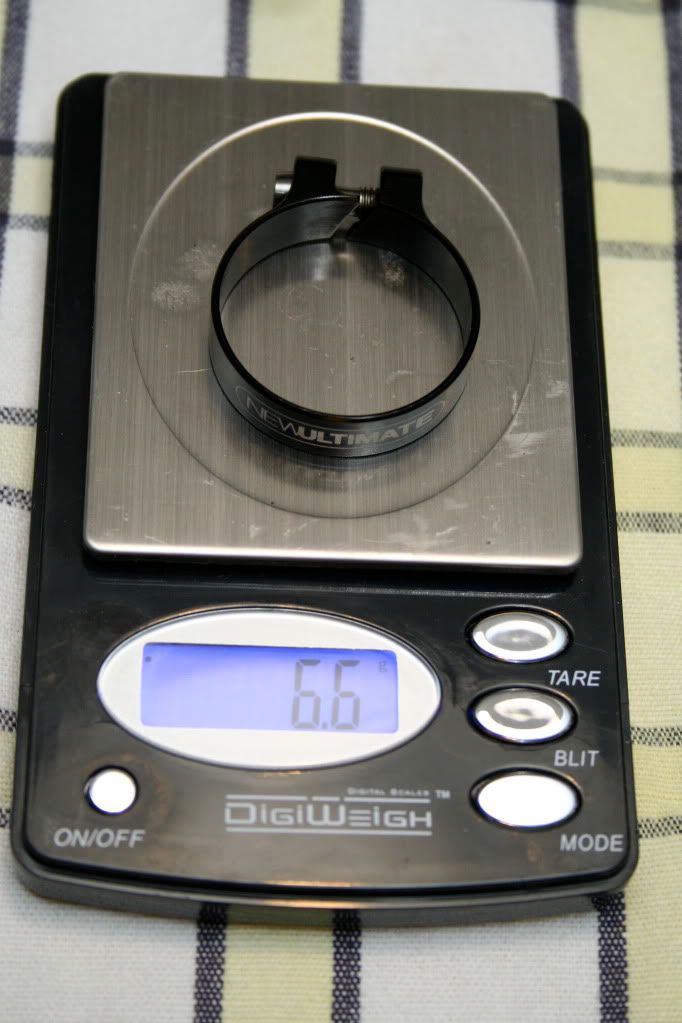

Toss in a New Ultimate 34.9mm seatpost collar too!

RESIDENT GRUMPY OLD MAN.

User avatar
djconnel
Posts: 7926
Joined: Wed Sep 26, 2007 1:57 pm
Location: San Francisco, CA
Contact:

by djconnel

Okay -- you guys convinced me. I'm in on this, too. I feel better about this with the Becker/Tune Concord than my kludged KCNC. Although I just got a KCNC post today from my favorite jewelry store, Bike Nüt to use with my SLR, to spare the Becker from daily use.

icolquhoun
Posts: 51
Joined: Sun Aug 01, 2010 9:30 pm
Location: New Jersey USA

by icolquhoun

I just performed the same process as the OP (rebizap) on a 31.6mm elite post two days ago. However, I left a marginal amount of material in the center of the lower "craddle" to prevent junk from going down the seatpost into the BB area of my supersix I'm taking about .020" thick piece using a 3/8" Ball end mill and countouring it using a CNC machine with a program I wrote for it.
Before 194g
After 142g still using the steel bolts/washers/barrel nuts

Ordering up some Ti hardware today for it, hoping to get it down to about 135ish

Total time spent was about 1 hour, with most of that being drawing a surface and coding/inputing the program into the machine just for that center lower craddle. The rest was all done by hand on a conventional vertical milling machine and lathe.

As for length of the post, I cut about 1.25" off, so that the part number and all engraved text is still on the post. I know I could cut it down further, as there is about 5" of post in the seat-tube of the bike. If I cut that down further, switched to Ti bolts and trimmed the excess off the front bolt, I think I'd be at around 120g easily. For the cost of the Ti bolts, or about $20. That's light enough for me, and the strength of the post really hasn't been compromised in any way.

Tuning my 27.2 post today, I'll see what I come up with.

BmanX
Posts: 3844
Joined: Thu Nov 10, 2005 5:31 pm

by BmanX

Oh you want tuning well I will give you Thomson tuning.

Stock upper and lower cradle 50g
Stock bolts 22g

Carbon upper and lower cradle 24g
Ti bolts 12g - will order these from Toronto Cycles in the next week.

Original weight of the Thomson modified post for ISP will be 130 and then I will lower that by another 36g so that finished weight will be around 94g or maybe lighter with the ti bolt coming.

Thomson seatpost head (currently at 130g, I have a ti bolt coming for the wedge, then you have the carbon craddle for it - interestingly my external caps are lighter, even though made of steel, coming in just over 100g generally)
BIG DADDY B FLOW
AERO & LIGHT is RIGHT

Cervelo SLC 5960g/13.13 lbs

icolquhoun
Posts: 51
Joined: Sun Aug 01, 2010 9:30 pm
Location: New Jersey USA

by icolquhoun

BmanX, yeah, i saw that in your build thread
very cool idea
I like!

Jersland
Posts: 92
Joined: Thu Feb 11, 2010 6:46 am
Location: Jacksonville FL

by Jersland

Can someone post the grams lost to $ spent? Im interested in going a similar route with ti hardware and carbon cradles. Just wondering what was spent to grams lost.

Thanks
Justin

rallyator
Posts: 1
Joined: Wed Jun 06, 2012 3:10 pm

by rallyator

Can anyone measure the distance (in mm) between the bolts on a Thomson cradle?. Tks.

bm0p700f
in the industry
Posts: 3500
Joined: Sat May 12, 2012 7:25 pm
Location: Glermsford, Suffolk U.K
Contact:

by bm0p700f

I cut my 26.8mm Elite down and it went from 230g to 180g. With Ti hardware which I now have that another 8g lost. I intend to try and modify the clamp to loose some more. If I can get it don to 165g I will be pleased.

by Weenie


BmanX
Posts: 3844
Joined: Thu Nov 10, 2005 5:31 pm

by BmanX

Email Berk and get the carbon cradle and cap. As youc an see from the posts above the weight savings is great.
BIG DADDY B FLOW
AERO & LIGHT is RIGHT

Cervelo SLC 5960g/13.13 lbs
