PostPosted: Sat May 10, 2014 6:41 am
Offline
User avatar

Joined: Sat Jul 28, 2012 11:31 pm
Posts: 143
Hello,

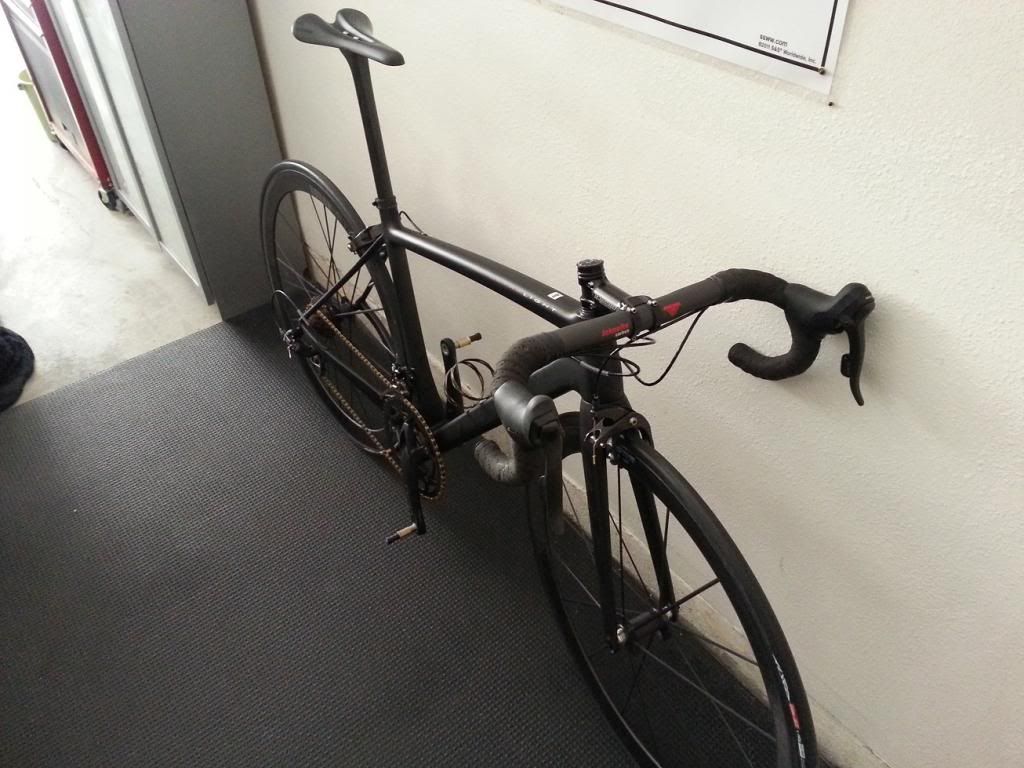

I thought I would put together a BH Ultralight with some weenie parts. If I can drop weight elsewhere, please let me know how. I used AICAN Bungarus housing with PowerCordz for shifting. The performance on this combination is absolutely terrible as the PoweCordz seem to stick inside the housing/liner. Any advice on how to get this combo to work better would be appreciated. I am probably gonna just switch them out to steel cables or maybe the KCNC Ti Cables. I was also thinking about using the Ax Lightness Ax6000 fork that I have. I decided not too because I wanted to live past my 40th birthday. The Cirrus Ultralite Ti pedals are also very scary as it is not an easy task to clip out of them. In fact, I snapped my TUNE bottle cage trying to get my right foot out of them. I will probably switch the pedals out too. Thanks for looking :)

FRAME: 2014 BH ULTRALIGHT SIZE SMALL
STEM: EXTRALITE ULTRASTEM OC (I AM CURRENTLY WAITING FOR MCFK STEM)
TOPCAP: EXTRALITE W EXTRALITE BOLT
HEADSET EXPANDER: EXTRALITE ULTRASTAR 2
SPACERS: EXTRALITE DELRIN
HEADSET : EXTRALITE ULTRATOP
FSA HEADSET FOR BOTTOM (EXTRALITE ULTRABOTTOM DID NOT WORK.....TOO MUCH PLAY....AFRAID I WOULD CRACK FRAME)
HANDLEBAR: SCHMOLKE TLO OS
SHIFTERS: SRAM RED 10 SPEED WITH BTP CARBON CLAMPS
BRAKES: AX LIGHTNESS ORION
BRAKE PADS: REYNOLDS BLUE
BRAKE CABLES: KCNC TI CABLES
SHIFT CABLES: POWERCORDZ (THEY SUCK!)
HOUSING: AICAN BUNGARUS
SADDLE: DASH
SEATPOST: DASH 350MM
SEATPOST CLAMP: MCFK SUB5
F DERAILLEUR: SRAM RED (NON YAW)
R DERAILLEUR: SRAM RED 10 SPEED
CASSETTE: KCNC TI 12-25
CRANKSET: THM CLAVICULA 170MM WITH FIBRELYTE PRELOAD CAP
CHAINRINGS: FIBRELYTE 53x39
CHAINRING BOLTS: KCNC SL
BOTTOM BRACKET: THM BB386
PEDALS: ULTRALITE CIRRUS TI
CHAIN: KMC X11SL
DERAILLEUR PULLEYS: ROTHSHEK CARBON
WHEELSET: LEW PRO VT-1
TIRES: TUFO ELITE JET
WATER BOTTLE CAGE: TUNE SKYLINE
SKEWERS: TUNE SKYLINE
BAR TAPE: DEDA TRAFORATO



Last edited by godzuki26 on Wed Nov 11, 2015 3:03 am, edited 6 times in total.

Top

PostPosted: Sat May 10, 2014 7:20 am
Offline
User avatar

Joined: Sat Jul 28, 2012 11:31 pm
Posts: 143

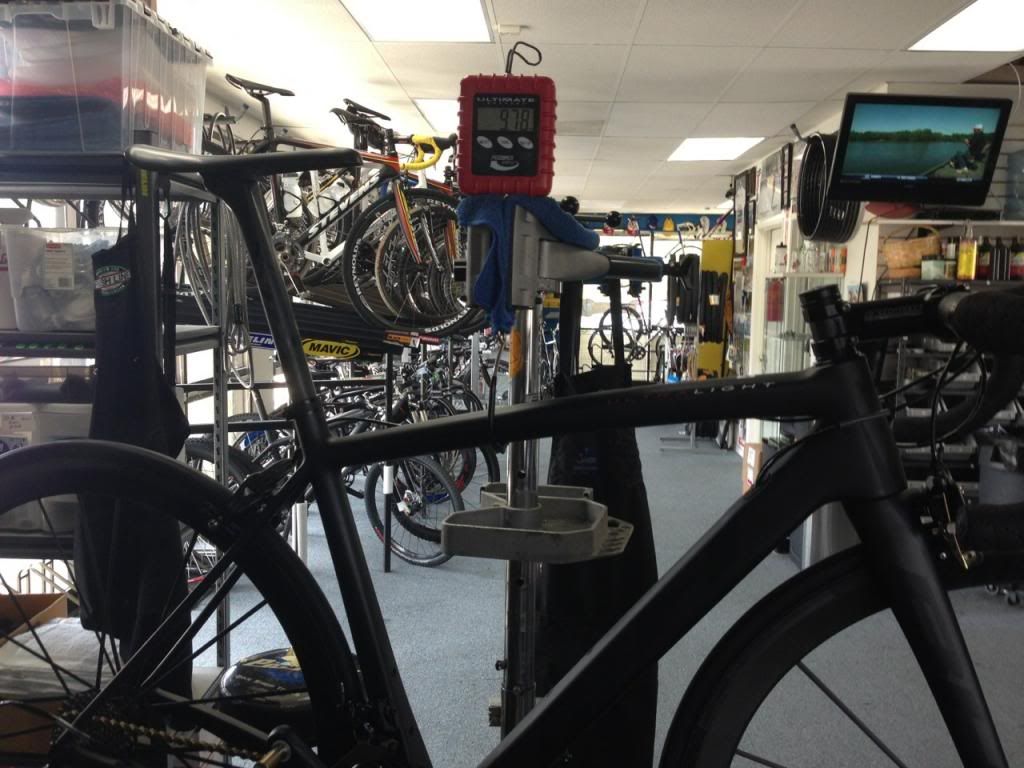

To all that are curious about the frame and fork weights here they are. The Ax Lightness fork is much lighter (uncut weight) but I cannot find the courage to ride it.



Top

PostPosted: Sat May 10, 2014 8:01 pm
Offline

Joined: Fri May 02, 2008 5:39 pm
Posts: 962
Location: Here, there and everywhere
Looks awesome! Do you have info on the MTB too?


Top

PostPosted: Sat May 10, 2014 8:26 pm
Offline
User avatar

Joined: Sun Jun 18, 2006 10:29 am
Posts: 5148
Location: Athens, Greece
Impressed!

_________________
My 6696gr Cipollini Bond
My 8618gr Colnago Master X-light


Top

PostPosted: Sat May 10, 2014 8:41 pm
Offline

Joined: Tue Jan 29, 2008 8:20 pm
Posts: 408
Location: Denmark
:thumbup:
That looks really good. And a great weight also.


Top

PostPosted: Sat May 10, 2014 9:08 pm
Offline
in the industry

Joined: Fri Dec 07, 2012 8:34 pm
Posts: 265
Location: North Carolina
very nice build, but I am less than impressed with the frame weight. Did that include all the required hardware (bottle cage bolts, internal routing pieces, rear der hanger etc?)

I say this because my size large frame came in at 2 grams heavier (825 g)

_________________
The New: BH http://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=117760

The Old: Trek http://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=110051


Top

PostPosted: Sat May 10, 2014 9:56 pm
Offline
User avatar

Joined: Sat Jul 28, 2012 11:31 pm
Posts: 143
When I put together the bike, the frame was the last thing I purchased as I was deciding between the BH ultralight, the 2014 Addict SL or the Ax Lightness Vial EVO. I went with the BH because I liked the black on black color scheme and wanted to try out the BB386 BB standard. The frame weight did surprise me somewhat as I was expecting a lighter weight for a size small. The weight includes the derailleur hanger and the internal cable guides (blue cables that you remove after installing cables). Before weighing the frame, I removed the bottle cage bolts and cable stop panels. I was really hoping for a sub 800 gram weight. It seems that the 2013 and 2014 models with the internal cable routing weigh a little more than the 2012 version with the external cable guides.


Top

PostPosted: Sat May 10, 2014 10:30 pm
Offline

Joined: Thu Dec 18, 2003 1:16 pm
Posts: 775
Location: muc
wpccrunner wrote:
very nice build, but I am less than impressed with the frame weight. Did that include all the required hardware (bottle cage bolts, internal routing pieces, rear der hanger etc?)

I say this because my size large frame came in at 2 grams heavier (825 g)




godzuki26 wrote:
..... I was really hoping for a sub 800 gram weight. ......



:)
guys....you are crazy! :wink:
30 or 40 gramm more or less...sorry. who cares??

i think, this is a very beautiful frameset, and an impressive build.
the ax-fork seems not to be made for tapered head-tubes. combining it with the bh-frame might cause some problems?

btw: claimed frame-weight is 750 gramm. without specification of size, so, as you can imagine, its related to smallest size xxs. and manufactorers use to weigh naked frames, without anything.
so, i think, 823 gramm for size "s"-Frame, with hanger and cable guides, is absolutely ok.;-)

_________________
sorry vor mai bed englisch!


Last edited by Krull on Sat May 10, 2014 10:39 pm, edited 6 times in total.

Top

PostPosted: Sat May 10, 2014 10:33 pm
Offline
User avatar

Joined: Sat Jul 28, 2012 11:31 pm
Posts: 143

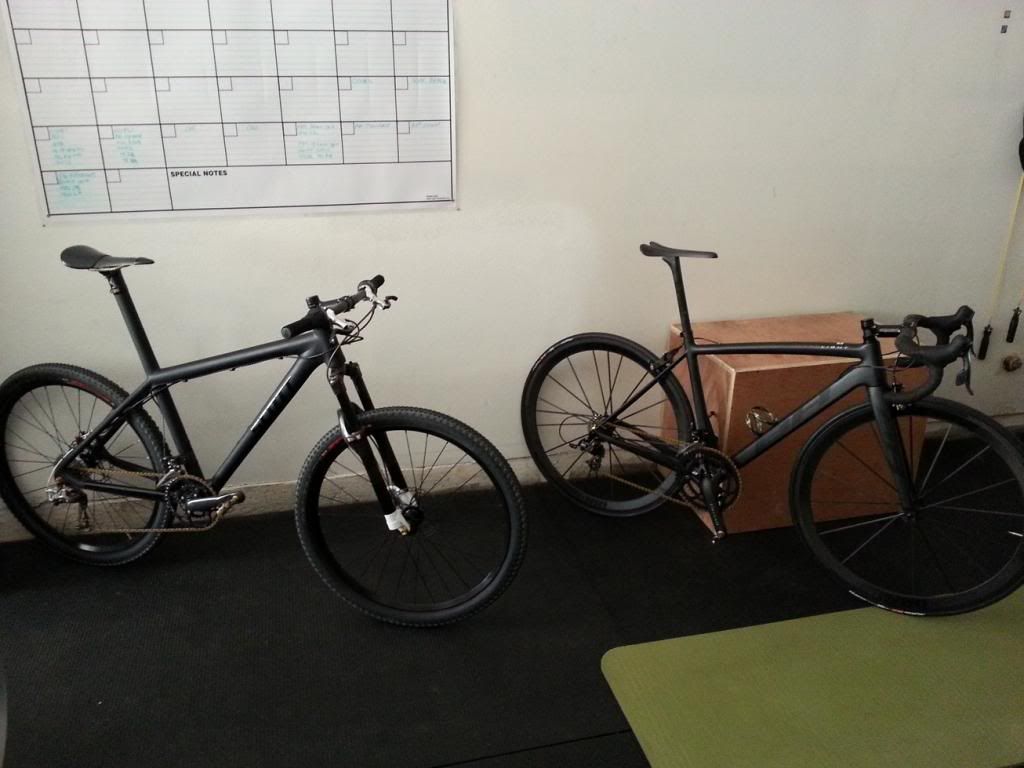

@ Dan W the mtb is:

FRAME: 2009 SCOTT SCALE RC SIZE M
STEM: EXTRALITE ULTRASTEM UL3
TOPCAP: TUNE CARBON TOPCAP AND BOLT
HEADSET EXPANDER: EXTRALITE ULTRASTAR 2
SPACERS: EXTRALITE DELRIN
HEADSET : TUNE BUBU
HANDLEBAR: MCFK STRAIGHT BAR
SHIFTERS: SRAM XX GRIPSHIFT
BRAKES: FORMULA R1 RACING
ROTORS: SCRUB
BRAKE CABLES: ALLIGATOR ILINK STEEL
SHIFT CABLES: ALLIGATOR ILINK STEEL
HOUSING: ALLIGATOR ILINK
SADDLE: TUNE SPEEDNEEDLE
SEATPOST CAP:TUNE CAPPY
F DERAILLEUR: SRAM RED (NON YAW)
R DERAILLEUR: SRAM XX
CASSETTE: SRAM XX 11-32
CRANKSET: LIGHTNING 175MM
CHAINRINGS: FRM 42x27
CHAINRING BOLTS: KCNC SL
BOTTOM BRACKET: ZIPP VUMAQUAD CERAMIC
PEDALS: CRANK BROTHERS CANDY 4TI
CHAIN: KMC X10SL
DERAILLEUR PULLEYS: ROTHSHEK CARBON
RIMS: STANS PODIUM MMX
HUBS: TUNE KING/KONG
SPOKES: TUNE/SAPIM SUPERSPOKES
TIRES: FURIOUS FRED (SWITCHED TO STANS CROW)
SKEWERS: TUNE DC 16/17
GRIPS: KCNC
SUSPENSION FORK: DT SWISS XRC 100 RACE w MANUAL LOCKOUT LEVER
RIGID FORK: RICHIE CARBON



Top

PostPosted: Sat May 10, 2014 11:06 pm
Offline
User avatar

Joined: Fri Apr 04, 2008 2:49 am
Posts: 1415
Location: Europe
Nice frame, decent weights. You obviously had a big budget for this build. You should get that black KMC X10SL DLC chain to really finish your bike(s). :)

_________________
“I always find it amazing that a material can actually sell a product when it’s really the engineering that creates and dictates how well that material will behave or perform.” — Chuck Teixeira

RideWert.com
Wert Cycling on Facebook


Top

PostPosted: Sun May 11, 2014 12:47 am
Offline

Joined: Mon Sep 17, 2012 10:53 pm
Posts: 586
Holy hell! beautiful build!!!


Top

PostPosted: Sun May 11, 2014 1:35 am
Offline

Joined: Thu Dec 05, 2013 3:37 am
Posts: 159
+1 to the kmc chain

Sent from my Nexus 7 using Tapatalk


Top

PostPosted: Sun May 11, 2014 1:58 am
Offline

Joined: Sat Apr 30, 2011 3:37 am
Posts: 78
murdered out. great weight


Top

PostPosted: Sun May 11, 2014 4:13 am
Offline
User avatar

Joined: Sat Jul 28, 2012 11:31 pm
Posts: 143
I like the black KCNC DLC chain! I just ordered it along with some KCNC Ti shift cables to replace the Powercordz shift cables. Anyone out there get this combo to work?? Do I maybe need a different liner? Kind of a waste to dump the Powercordz since they aren't cheap.


Top

PostPosted: Sun May 11, 2014 4:15 am
Offline

Joined: Sat Nov 10, 2007 9:51 pm
Posts: 416
you need to use the powercordz swift outers and liners with the powercordz inners


Top
