2014 Allez Expert E5 with custom Di2

Who are you (no off-topic talk please)

Moderator: Moderator Team

ruffryder
Posts: 20
Joined: Fri Feb 13, 2009 5:01 am

by ruffryder

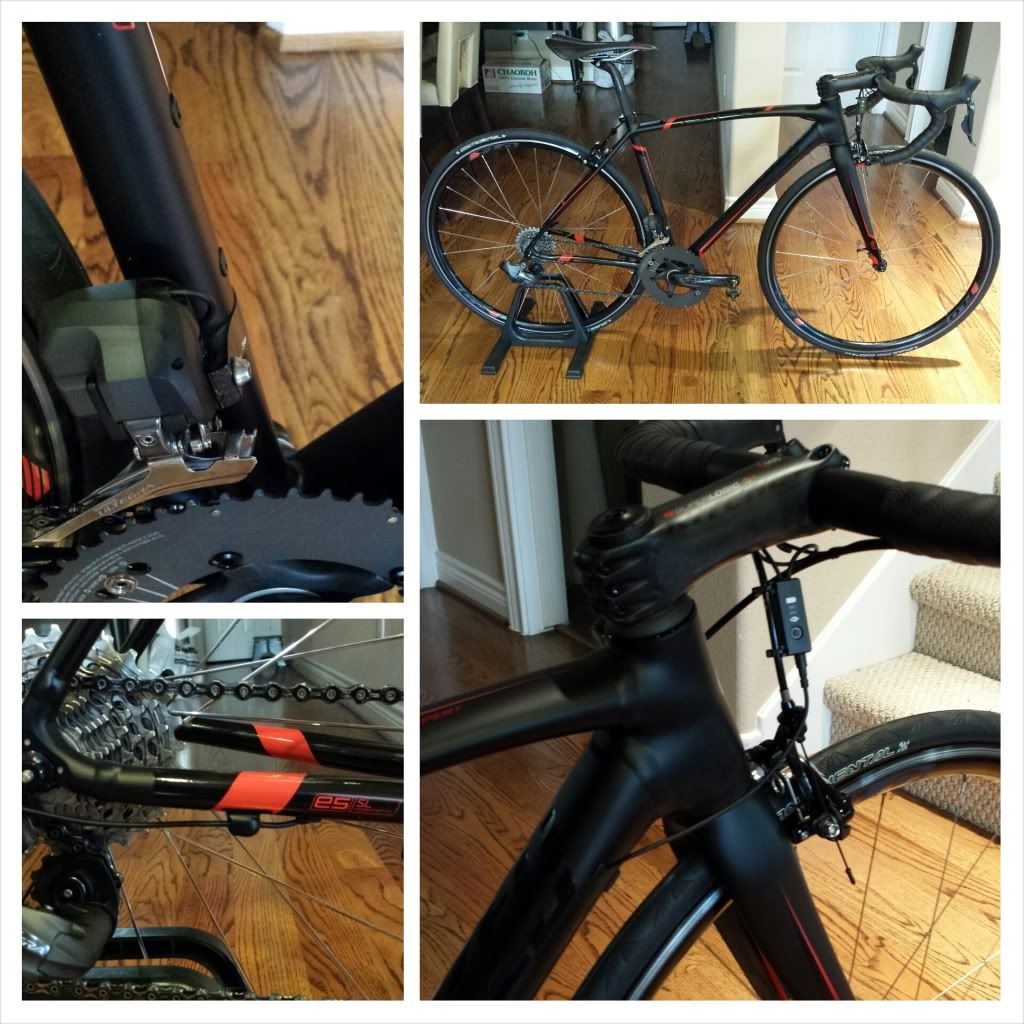

2014 Specialized Allez Expert, bought as complete bike and parted. Built frame with Ultegra Di2, drilled holes, shaved cable stops. Big thanks to Anders for his CAAD10 Di2 work. Will post parts and weights soon.

2 rides so far and it performs as advertised. Highly doubtful I will go back to carbon.



User avatar
Elrey
Posts: 563
Joined: Sat Oct 23, 2010 11:13 pm
Location: Denmark. Yeeees

by Elrey

Nice! Would like to se some up close pictures of your drilling modifications.

by Weenie


bananasbrah
Posts: 28
Joined: Thu Jan 02, 2014 8:38 pm

by bananasbrah

Nice build, I think the osyms are a nice touch and I usually hate seeing them. I'd like to see some close-ups of the drilling too.

How hot is the frameset in real life? I've been looking into the '14s and have been a bit put off by the red detailing, especially on the forks and downtube after what the blacked out 2013 looked like. Makes me wonder whether the S-Works Allez I've been dreaming of is worth the extra coin considering the welding's basically identical.

+1 for alu>carbon.

ruffryder
Posts: 20
Joined: Fri Feb 13, 2009 5:01 am

by ruffryder

Elrey wrote:Nice! Would like to se some up close pictures of your drilling modifications.

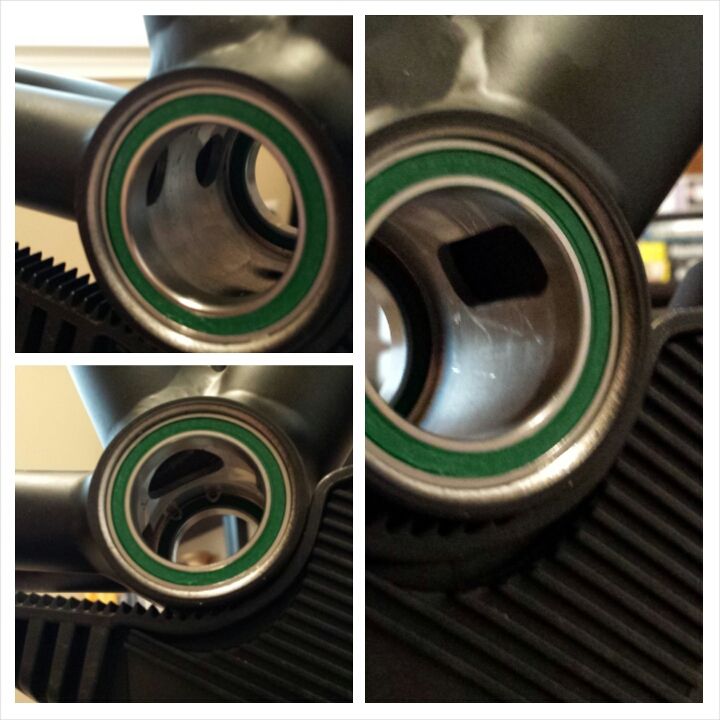

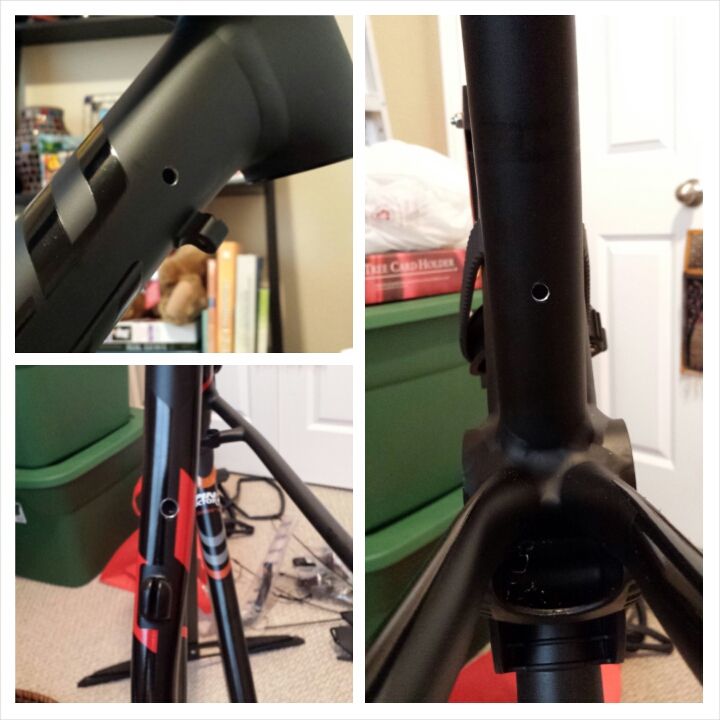

Holes drilled in downtube, seat tube and chainstay. I have an internal battery that hides in the seatpost/seat tube, junction B is shoved in rectangular slot in BB/downtube.



ruffryder
Posts: 20
Joined: Fri Feb 13, 2009 5:01 am

by ruffryder

bananasbrah wrote:Nice build, I think the osyms are a nice touch and I usually hate seeing them. I'd like to see some close-ups of the drilling too.

How hot is the frameset in real life? I've been looking into the '14s and have been a bit put off by the red detailing, especially on the forks and downtube after what the blacked out 2013 looked like. Makes me wonder whether the S-Works Allez I've been dreaming of is worth the extra coin considering the welding's basically identical.

+1 for alu>carbon.


Thanks, the rings are Dovals from Korea which are much better quality than osymetric. I have a project black venge so a little color was nice for me. The S-Works Allez is definitely NOT worth it since i believe the Expert frame is practically the same and the Race is not that far off either. Good luck!

User avatar
Elrey
Posts: 563
Joined: Sat Oct 23, 2010 11:13 pm
Location: Denmark. Yeeees

by Elrey

Thanks. How did you close up the holes? Some kind of rubber sealing?

ruffryder
Posts: 20
Joined: Fri Feb 13, 2009 5:01 am

by ruffryder

Elrey wrote:Thanks. How did you close up the holes? Some kind of rubber sealing?


Used this grommet kit for 6mm holes: Shimano E-Tube Di2 Grommet SM-GM01


User avatar
Elrey
Posts: 563
Joined: Sat Oct 23, 2010 11:13 pm
Location: Denmark. Yeeees

by Elrey

Aaah... Thank you for that information. Very nice. Must have missed it in Anders' thread.

bananasbrah
Posts: 28
Joined: Thu Jan 02, 2014 8:38 pm

by bananasbrah

ruffryder wrote:
bananasbrah wrote:Nice build, I think the osyms are a nice touch and I usually hate seeing them. I'd like to see some close-ups of the drilling too.

How hot is the frameset in real life? I've been looking into the '14s and have been a bit put off by the red detailing, especially on the forks and downtube after what the blacked out 2013 looked like. Makes me wonder whether the S-Works Allez I've been dreaming of is worth the extra coin considering the welding's basically identical.

+1 for alu>carbon.


Thanks, the rings are Dovals from Korea which are much better quality than osymetric. I have a project black venge so a little color was nice for me. The S-Works Allez is definitely NOT worth it since i believe the Expert frame is practically the same and the Race is not that far off either. Good luck!


Cheers for that. The drilling looks neater than a lot of DIY jobs I've seen, you planning on tidying up the junction box under the stem? Have to say it's nice to see a decent bar drop as well.

Yeah I'm leaning towards grabbing myself one of these and rebuilding it to be honest, the paint job on the '14 S-Works isn't a touch on the first limited edition run last year either. Can't see where the extra money would go other than on the name.

ruffryder
Posts: 20
Joined: Fri Feb 13, 2009 5:01 am

by ruffryder

Thanks, I used a Ti drill bit and cleaned up the bore using a dremel. Yes, definitely have to tidy up that mini nest under the stem.

alfredox5
Posts: 128
Joined: Tue Jul 20, 2010 5:17 am

by alfredox5

Sweet looking Allez! :)

Valbrona
Posts: 1482
Joined: Fri Oct 28, 2011 3:25 am
Location: United Kingdom of Great Britain and Northern Ireland

by Valbrona

That is a clever bike build. Aluminium frames are better these days, and it is just not sensible to chuck loads of money at a high-end carbon frame when technology moves on so quickly - unless you are very well off, of course.

GT8
Posts: 51
Joined: Sun Aug 28, 2011 3:58 pm

by GT8

Thats a very nice looking Allez - I love the custom Di2 integration and clever use of the grommet kit results in a very pro finish :)

I'm going to be drilling my alu Heckler soon for a dropper post - how did you drill the holes? Did you start with a smaller pilot hole then a bigger bit?

ruffryder
Posts: 20
Joined: Fri Feb 13, 2009 5:01 am

by ruffryder

GT8 wrote:Thats a very nice looking Allez - I love the custom Di2 integration and clever use of the grommet kit results in a very pro finish :)

I'm going to be drilling my alu Heckler soon for a dropper post - how did you drill the holes? Did you start with a smaller pilot hole then a bigger bit?


Thanks! I first used a centerpunch to mark the spot, then about a regular 3mm drill bit, finished the job with a 6mm Ti bit. Make sure you tape the bit a little from the tip so it will stop you from drilling any further since the tube diameter is small, especially on my rear chain stay. Keep the bit moving at all times even when withdrawing the bit, this will keep the bore clean. I finished off with a sanding stone bit on my dremel to get rid of any sharp edges or burrs, you can use a file as well. Good luck!

User avatar
Anders
Posts: 844
Joined: Sun Dec 12, 2004 2:49 pm
Location: Mårslet, Denmark
Contact:

by Anders

Regarding the cables there is room in the levers for the excess. But you need to fix this before doing the tape :-( Thanks for the credits :-)
